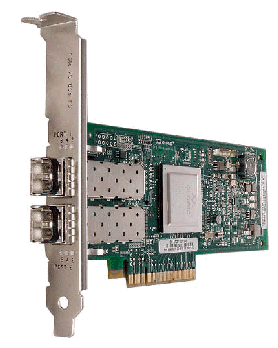

42D0510 : IBM 8GB Dual Port 8Gbps (FC) to PCI Express Host Bus Adapter (HBA)

Specifications:

Product Name

8GB Fibre Channel to PCI-E Host Business Adapter (X4) Double Port HBA

Product Type

Fibre Channel Host Bus Adapter

Green Compliant

Yes

Green Compliance Certificate/Authority

RoHS

Fibre Channel Class Supported

Class 2

Class 3

Form Factor

Low-profile Internal

Product Model

QLE2562

Data Transfer Rate

8 Gbps Fibre Channel

Dimensions

2.5" Height x 6.6" Width

Topology

Point-to-Point

Switched Fabric

Ports/Channels

2 x LC Fibre Channel

Host Interface

PCI Express 5 GHz x4

Connectivity Media

Multi-mode

Certifications & Standards

FCC Part 15, Subpart B, Class A

ICES-003, Class A

EN55022, Class A

AS/NZS 3548 Class A

VCCI V-3/2004.4, Class A

MIC

BSMI (CNS 13438)

cUL

UL60950

CSA C22.2 No.60950, Class 1 Laser Product per DHHS 21CFR J

73/23/ECC Low Voltage Directive

TUV

EN60950-1:2001

EN60825- 1:1994+A1+A2

EN60825-2:1994+A1

Data Throughput

62.50 Gbps Fibre Channel

Protocols

FC-AL-2

FC-AL

FC-Tape

Backward Compatibility

PCI-X 2.0

Number of Ports/Channels

2
