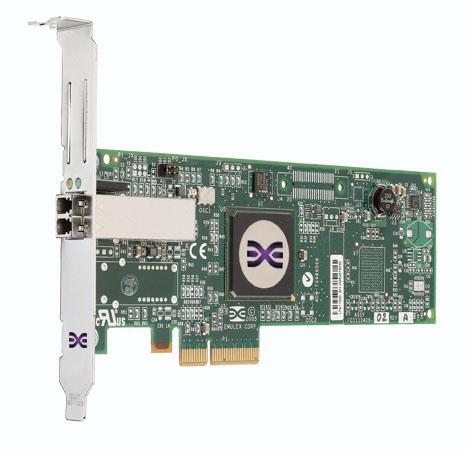

42C2069 : IBM/Emulex 4Gbps FC Single-Port PCI-e HBA for IBM System x

Main Specifications

Product Description

Emulex network adapter

Device Type

Network adapter

Form Factor

Plug-in card

Interface (Bus) Type

PCI Express x4

Bus Voltage

3.3 V

Dimensions (WxDxH)

6.6 in x 2.6 in

Weight

0.9 oz

Data Link Protocol

4Gb Fibre Channel

Data Transfer Rate

4.24 Gbps

System Requirements

Microsoft Windows 2000 Server, Microsoft Windows 2000 Advanced Server, SuSE Linux   Enterprise Server 8, Microsoft Windows Server 2003 Enterprise Edition, Microsoft Windows Server 2003 Web Edition, Microsoft Windows Server 2003 Standard Edition, Novell NetWare 6.5, Red Hat Enterprise Linux AS 3, Red Hat Enterprise Linux ES 3, SuSE Linux Enterprise Server 9 for IBM POWER, SuSE Linux Enterprise Server 9, Red Hat Enterprise Linux AS 3 for IBM POWER, Red Hat Enterprise Linux AS 4 for IBM POWER, Red Hat Enterprise Linux AS 4, Red Hat Enterprise Linux ES 4

Manufacturer Warranty

1 year warranty

General

Device Type

Network adapter

Form Factor

Plug-in card

Interface (Bus) Type

PCI Express x4

Bus Voltage

3.3 V

Depth

6.6 in

Height

2.6 in

Weight

0.9 oz

Networking

Connectivity Technology

Wired

Data Link Protocol

4Gb Fibre Channel

Fibre Channel

FC-IP, FCP, FCP-2

Data Transfer Rate

4.24 Gbps

Expansion / Connectivity

Interfaces

1 x network - 4Gb Fibre Channel

Compatible Slots

1 x PCI Express x4

Miscellaneous

Compliant Standards

CE, TUV, C-Tick, BSMI, CISPR 22 Class A, DHHS, VCCI Class A ITE, ICES-003 Class A, UL 60950-1, CSA C22.2 No. 60950-1-03, EN 60825, EN 55022, EN 55024, FCC Part 15 A, MIC Class A

Software / System Requirements

OS Required

Microsoft Windows 2000 Server, Microsoft Windows 2000 Advanced Server, SuSE Linux   Enterprise Server 8, Microsoft Windows Server 2003 Enterprise Edition, Microsoft Windows Server 2003 Web Edition, Microsoft Windows Server 2003 Standard Edition, Novell NetWare 6.5, Red Hat Enterprise Linux AS 3, Red Hat Enterprise Linux ES 3, SuSE Linux Enterprise Server 9 for IBM POWER, SuSE Linux Enterprise Server 9, Red Hat Enterprise Linux AS 3 for IBM POWER, Red Hat Enterprise Linux AS 4 for IBM POWER, Red Hat Enterprise Linux AS 4, Red Hat Enterprise Linux ES 4

Manufacturer Warranty

Service & Support

1 year warranty

Service & Support Details

Limited warranty - 1 year

Environmental Parameters

Min Operating Temperature

32 °F

Max Operating Temperature

113 °F

Humidity Range Operating

5 - 95%
