| Operating System |
|
| Microsoft Windows |

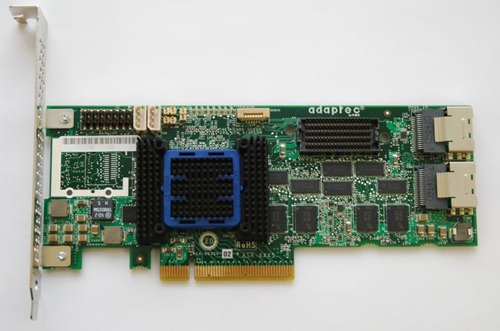

Adaptec RAID 6805 Controller |
| Red Hat Linux |
Additional low profile vented bracket |
| SUSE Linux |
Quick Installation Guide |
| Fedora |
(English/French/German/Italian/Spanish) |
| Debian Linux |
Software and documentation CDs |
| Ubuntu Linux |
Cable (Kit only): two mSASx4-4SATA x1-SB (2272300-R), 0.7m |
| Sun Solaris |
Warranty |
| FreeBSD |
3 years |
| VMware ESX |
Management Utilities |
| |
Adaptec Storage Manager™ (ASM) |
| For a detailed list see ASK Answer ID 17078. |
Java-based GUI Management Utility |
| |
Remote configuration, monitoring & notification |
| Benefits |
ASM OS Support: Windows, Linux, SCO, Solaris, FreeBSD |
| Performance Unified Serial RAID controller supports both SATA and SAS devices. Ideal for bandwidth intensive storage applications; NAS, OLTP servers, web servers, and digital surveillance. Offers Zero-Maintenance Cache Protection and Intelligent Power Management. |
Microsoft VDS Support |
| SNMP, SMTP |
| Remote firmware updates |
| Key Differentiators |
ARCCONF |
| Zero-Maintenance Cache Protection |
Command Line Interface |
| Intelligent Power Management |
Adaptec BIOS Configuration Utility (ACU) |
| |
BIOS level configuration utility |
| Customer Needs |
Flashable BIOS support |
| High I/O transaction and high bandwidth processing. |
Physical Size |
| |
2.5" H x 6.6" L (64mm x 167mm) |
| Form Factor |
Operating Temperature |
| MD2 Low-Profile |
0°C to 55°C (with 200 LFM airflow) |
| |
Operating Voltage |
| Cache Memory |
0.17 amp @ 3.3V |
| 512MB of DDR2 667MHz cache memory |
1.25 amp @ 12V measured on PCIe Gen2 systems with 6G drives |
| |
Regulatory Certification |
| RAID Levels |
CE, FCC, UL, C-tick, VCCI, KCC |
| RAID levels 0, 1, 1E, 5, 5EE, 6, 10, 50, 60 and JBOD |
Environmental Compliance |
| |
RoHS, REACH, WEEE |
| Key RAID Features |
Mean Time Before Failure (MTBF) |
| Supports up to 256 SATA or SAS devices using SAS expanders |
860,953 hours at 40 degree C
|
| RAID levels 0, 1, 1E, 5, 5EE, 6, 10, 50, 60 and JBOD |
|
| Quick initialization |
|
| Online Capacity Expansion |
|
| Copyback Hot Spare |
|
| Dynamic caching algorithm |
|
| Native Command Queuing (NCQ) |
|
| Background initialization |
|
| Hot-plug drive support |
|
| RAID Level Migration |
|
| Hot spares global, dedicated, and pooled |
|
| Automatic/manual rebuild of hot spares |
|
| SES and SAF-TE enclosure management |
|
| Configurable stripe size |
|
| S.M.A.R.T. support |
|
| Multiple arrays per disk drive |
|
| Dynamic sector repair |
|
| Staggered drive spin-up |
|
| Bootable array support |
|
| Optimized Disk Utilization |
|
| Bus System Interface Type |
|
| 8-lane PCIe Gen2 |
|
| Internal Connectors |
|
| 2 internal (SFF-8087) Mini SAS |
|
| Data Transfer Rate |
|
| 6 Gb/s per port
|
|
