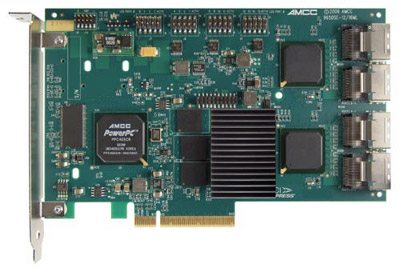

3ware 9650SE-16ML SATA II Controller Card, PCI Express x8, RAID Levels 0/1/5/6/10/50 Single Disk, JBOD.
Featuues: 8th-generation StorSwitch non-blocking switched architecture. On-board I/O RISC processor and RAID offload provides true hardware RAID.- SCSI device driver model to take advantage of the benefits of SCSI using inexpensive Serial ATA drives. Bootable array support for greater fault tolerance. Variable stripe size for performance tuning by application. 64-bit LBA support. ATA pass-through mode support. Up to 512MB DDR2 533 memory with ECC protection. (see table below) 32 pooled DMA channels. Complete configuration management suite. - 3ware BIOS Manager 2 (3BM2) easy to use BIOS configuration tool. - 3ware Disk Manager 2 (3DM2) browser-based management tool. - Command Line Interface (CLI) scriptable configuration tool.
Specifications: Form Factor: Full Height. Port Count: 16. Controller Interface Type: Serial ATA II. PCI Express Lanes: x8. Raid Levels: 0,1,5,6,10,50,Single Disk,JBOD. Onboard Memory: 256 MB DDR2 533. Connector Type: Multi-lane. BBU Support: Yes.
Operating System Support: Microsoft Windows 2003/XP/2000, Red Hat Linux, SuSE Linux, Fedora Linux, 2.4 Linux kernel, 2.6 Linux kernel, FreeBSD; 32/64-bit driver support for Windows, Linux and FreeBSD.
