Solution Provided	Eight-port internal SATA+SAS solution for high-density servers and workstations using up to 127 devices with the flexibility to use both SATA and SAS hard drives and solid state drives (SSDs)
Physical Dimensions	Low profile (6.6" X 2.536")
Connectors	Two Mini-SAS SFF8087 internal connectors
Device Support	Up to 127 SATA and/or SAS devices
Host Bus Type	x8 lane PCI Express 2.0 Compliant
Data Transfer Rates	Up to 6Gb/s per port
I/O Processor/SAS Controller	LSISAS2108 RAID-on-Chip (ROC)
Cache Memory	512MB 800MHz DDR II SDRAM
Battery Backup Unit	LSIiBBU07, an intelligent battery backup module option that directly connects to the controller
Key RAID Data Protection Features	RAID levels 0, 1, 5, 6,10, 50 and Single Disk Rapid RAID Recovery StreamFusion+ Online Capacity Expansion (OCE) Online RAID Level Migration (RLM) Auto resume after loss of system power during array rebuild or reconstruction Single controller Multipathing Load Balancing Variable stripe size support Fast initialization for quick array setup Background Task Activity Policies Multiple logical unit sizes and RAID levels on one card Bootable array support for greater fault tolerance of your OS SMTP support for email notification SNMP support Emergency Flash Recovery protects against failed firmware upgrade Up to 32 active units support Up to 32 drives per unit support Support for greater than 2TB volumes S.M.A.R.T support Staggered drive spin-up support Drive insertion and removal notification Global Hot Spare - Automatic rebuild - Enclosure management for SES2.0 via I2C or in-band signaling Optional Battery Backup with StorSave BBU
Operating Temperature	Maximum ambient: 60°C (44.5°C w/iBBU)
Operating Voltage	+3.3V

Regulatory Certifications	EN55022, EN55024, EN60950, EN 61000-3-2, EN 61000-3-3; FCC Class A, Class B; UL1950; UL; CSA C22.2; VCCI; RRL for MIC; BSMI; C-tick
RAID Management	3ware® Disk Manager 2 (3DM2™) Command Line Utility (CLI) 3ware BIOS Manager (3BM) SNMP support
OS Support	Extensive support includes Microsoft® Windows Vista®, Windows 7®, Windows Server® 2003/2008, Red Hat Linux®, SuSE Linux®, Fedora Core Linux®, FreeBSD®, and more. Visit the LSI download center for the most complete list of supported operating systems: lsi.com/support
MTBF	1,093,393 Hours
Ordering Information	3ware SAS 9750-8i Single Pack P/N: LSI00214; 3ware SAS 9750-8i Kit P/N: LSI00213

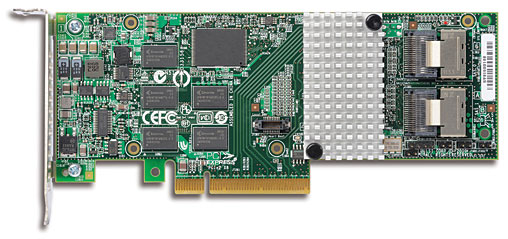

3Ware : 9750-8i - 8Port, 6Gb SATA/SAS PCIE 2.0, x8 Low Profile Raid Controller
